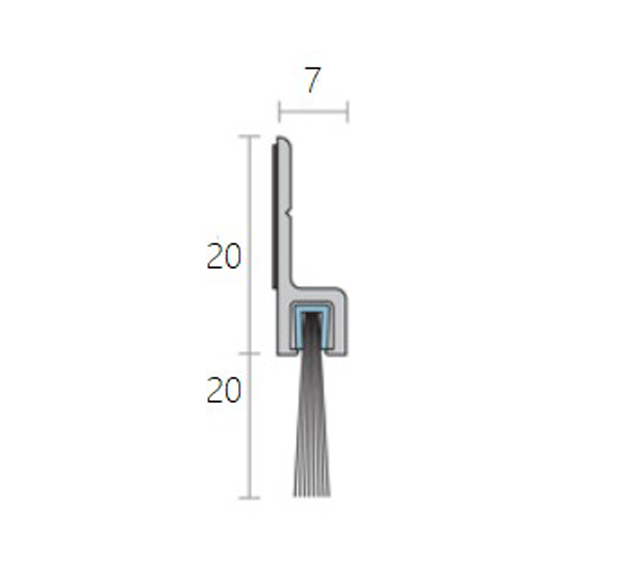

A nylon brush strip seal with a self adhesive aluminium holder. Mounted to the inside or outside door head and bottom face, SAM74 provides a very neat sealing solution with the advantage of final on site installation which overcomes unforeseen floor or sill variation.
Used in conjunction with Raven threshold plates.
- size: Available in stock lengths.
- Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.
- Location: Frames or bottoms of single, double, sliding and double acting doors. Suitable for hard, flat surfaces.
- Min/Max Gap: Up to 13mm (user determined).
- Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
- Seal: Black fine, dense, UV stabilised nylon filaments.
