SAM14N is a concealed automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. Acoustically designed the seal has a silicon gasket with an intumescent insert for maximum fire protection at the door bottom.
Ideal for Fire Engineered applications. Suitable for fire rated doors, solid core timber doors and hollow bottom rail metal doors.
SAM14N operates automatically by pressure against the door jamb on its adjustable strike. The seal has a level adjustment to achieve an optimum seal.
- size: 1070mm, 920mm, 820mm to 600mm(min). Seals cut back to exact size.

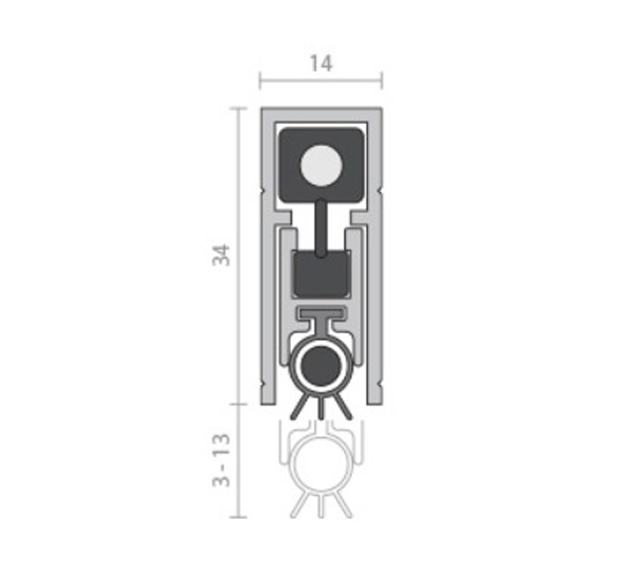

- Min/Max Gap: 3mm to 13mm.
- Finish: Satin clear (silver) anodised aluminium (15µm).
- Location: Fully Morticed into a 15mm x 34mm groove into the bottom of single and double butt hinged timber or metal doors.
- Fixing: Concealed screw fix with colour matched stainless steel escutcheon plates and screws supplied.
- Seal: Grey silicon rubber (SE).
